Flame Arrest 2000LT Cables 450°C (538°C Non UL) 600V With “LiquidTight” Jacket

PN: FE018DK604 Description: FLAMARLT 18(16)NC 600V 450C 4C
call to order

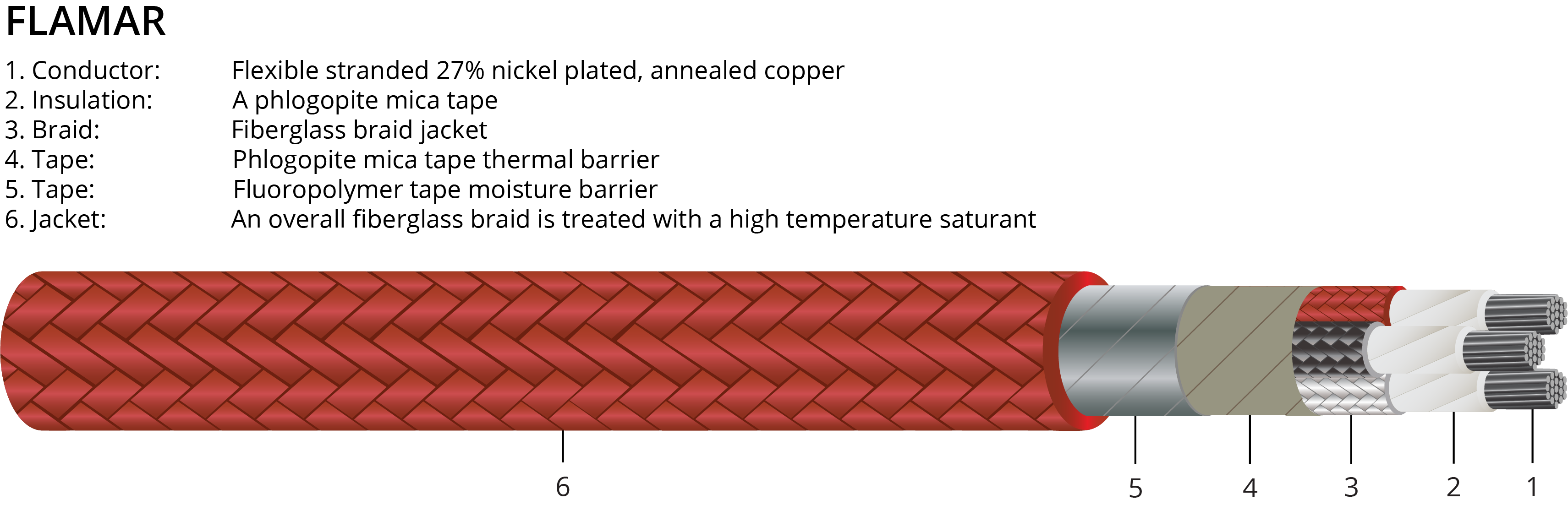

Product Design :

1) Conductor: 27% Nickel plated annealed copper per ASTM B355
2) Insulation:Mica/Glass Tape
3) Jacket:Fiberglass braid finished with a PTFE Dispersion
4) Cable:Conductors cabled together with a left hand lay with a mica/glass thermal barrier tape applied over the core
5) Moisture Barrier:Skived PTFE Tape
6) Jacket:Fiberglass braid with LiquidTight Finish

Standard/Specifications:

  • ASTM B355 Standard: Nickel Coated Soft or Annealed Copper
  • RoHS-3 Compliant with European Directive 2015/863
  • Passes IEEE 383 (Modified) 210,000 BTU Vertical Flame Test with circuit integrity up to 2 1/2 hours
  • Passes ICEA T-29-523 210,000 BTU Vertical Flame Test
  • Passes NEMA WC 3 Flame Propagation Test

Characteristics :

  • Conductor is composed of round and compact flexible stranded 27% Nickel Plated Copper
  • Mica tape insulation provides excellent high temperature and flame resistance.
  • Mica tape Insulation provides good chemical resistance and generates low smoke when exposed to flames
  • Mica tape thermal barrier provides excellent protection from high temperatures and flames
  • Skived PTFE moisture barrier provides excellent moisture and chemical resistance
  • ***LiquidTight jacket and finish creates an impervious seal between the TFE tape and outer braid for improved moisture and liquid resistance
  • Suitable for use in environments from -80°C to 450°C (538°C Non UL)
  • Product passes the 70,000 and 210,000 Btu/Hr Industry flame tests
  • Passes IEEE modified 210,000 BTU/hr Vertical Flame Test and maintains circuit integrity for a minimum of 2 1/2 Hrs
  • Maintains Circuit Integrity in conduit for over 24 Hrs with direct exposure to flame

Applications :

For use in instrumentation, control, power, signal and lighting circuits where circuit integrity is critical and/or for circuits that will be exposed to extreme heat or flame such as steel mills, petro chemical facilities, glass plants and oil refineries

Base Part Number AWG Size Stranding (Inches) Insulation Wall (Inches) Finished Diameter (Inches) Weight LB/KF Min Bend Radius (Inches) Temp Rating (° C) Voltage Rating (Volts) Ampacity (Amps) UL Style/Type CSA/C-UL Style/Type
FE018DK604 18 16/.0100 0.027 0.320 65 2.560 450 600 16 5107
Base Part Number AWG Size Stranding (mm) Insulation Wall (mm) Finished Diameter (mm) Weight KG/KF Min Bend Radius (mm) Temp Rating (° C) Voltage Rating (Volts) Ampacity (Amps) UL Stype/Type CSA/C-UL Style/Type
FE018DK604 0.81 16/.254 0.69 8.13 29.4 65.02 450 600 16 5107
